Solenoid Control Pliot Operated Valve
Fact sheet download >>>>>>>>>>>>>>>
Product image
Working Conditions

- Medium: Water
- Temperature: 0 ~ 70º C
- Pressure: PN 10, PN 16, PN 25

Technical Specifications

- Design Standard: EN 1074-5
- Test Standard: EN 12266-1 (ISO 5208)
- Face to Face Dimension: EN558-1 Series 1
- Drilling Flange: EN 1092-2 (ISO 7005-2)
- Protection: Fusion Bonded Epoxy Coated

Applications

- Water Plant
- Pipeline
- Building

Drakos Butterfly Valve
Fact sheet download >>>>>>>>>>>>>>>
Product image
Technical Data

- Size: DN50 (2”) to DN350 (14”)
- Nominal Pressure: PN10 /PN16
- Working Temperature: -45º C to +200º C
- Suitable Mediums: Fresh Water, Sewage, Sea Water, Air,
Oils, Alkalis, Salts, etc.

Standard

- Design & Manufacture According to
API 609, MSS SP-67, BS5155, BS EN593.
- Face to Face According to
DIN3202, API 609, MSS SP-67, BS5155, BS EN558, ISO5752.
- Top Flange According to
ISO5211.
- Pressure Test According to
API 598, BS EN12266-1, DIN3230, BS5155.
- Side Flange According to
DIN2501, ANSI125/150, AS129, BS4504, BS10D & E, JIS 10K.

Solenoid Valve AD31 (N.C)
Fact sheet download >>>>>>>>>>>>>>>
Product image
Specifications:

1. 2 ways normally closed
2. SS304 or Brass Body
3. Piston Pilot Operated type
4. Working Temperature: PTFE: -20º C ~ 200º C
VITON: -10º C ~ 120º C
5. Pressure; 0.05 ~ 1.60 MPa
6. Voltage of AC or DC is available when required
7. IP65 coil, Class F
8. Medium: Steam, Hot water, Oil, etc.

NCD-AMAX Water Pressure Reducing Valve
Fact sheet download >>>>>>>>>>>>>>>
Product image
Technical Data

Application: Water
Orifice Ø (mm): DN15 to DN50
Max. Working Pressure: 1.6 Mpa
Test Pressure (Body): 2.4 Mpa
Outlet Pressure Adjustment: 0.12 Mpa to 1.6 Mpa
Range: 0.05 Mpa to 0.8 Mpa
Working Temperature: Up to 80º C
Connection: Thread Ends to BSP

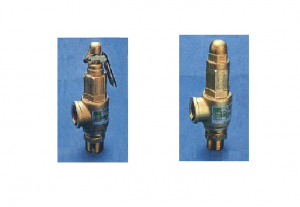

NCD Bronze Pressure Safety Relief Valve
Fact sheet download >>>>>>>>>>>>>>>
Product image
Working Conditions

1. Working Pressure: 0.3 ~ 10 kg/cm²
2. Working Temperature: - 45º C ~ 185º C
3. Working Fluid: NG, S, HW, NL

Solenoid Valve AD16 (N.O)
Fact sheet download >>>>>>>>>>>>>>>
Product image
Specifications:

1. 2 ways normally open
2. Cast Stainless Steel or Brass Body
3. Pilot kick diaphragm type
4. Installation: Mountable in any position but level position is best for longer durability
5. Standard Voltage: AC110V/220V (50/60 Hz)
6. Other voltage of AC or DC is available when required
7. Weather proof coil, Class F
8. ISO Standard
9. Diaphragm Material: EPDM

Solenoid Valve AD12 (N.C)
Fact sheet download >>>>>>>>>>>>>>>
Product image
Specifications:

1. 2 ways normally closed
2. SS304, Gunmetal or Brass Body
3. Pilot kick diaphragm type
4. Installation: Mountable in any position but level position is best for longer durability
5. Standard Voltage: AC110V/220V (50/60 Hz)
6. Other voltage of AC or DC is available when required
7. Weather proof coil, Class F
8. ISO Standard

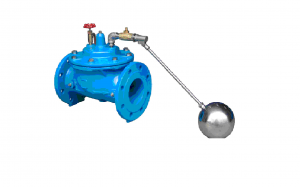

Remote Float Control Valve
Fact sheet download >>>>>>>>>>>>>>>
Product image
Working Conditions

- Medium: Water
- Temperature: 0 ~ 70º C
- Pressure: PN 10, PN 16, PN 25

Technical Specifications

- Design Standard: EN 1074-5
- Test Standard: EN 12266-1 (ISO 5208)
- Face to Face Dimension: EN558-1 Series 1
- Drilling Flange: EN 1092-2 (ISO 7005-2)
- Protection: Fusion Bonded Epoxy Coated

Applications

- Water Plant
- Pipeline
- Building

DRAKOS GLOBE VALVE
Fact sheet download >>>>>>>>>>>>>>>
Product image
- Rising stem globe valve
- Used as closing or discharging devices for water, steam, air & others non-
- Design standard: DIN 3356
- Working temperature: Maximum 120º C
- Nominal pressure: 16 bar (other rating also available on request)
- Body tested pressure: 24 bar
- Sealing tested pressure: 17.6 bar
- Hydraulic test standard: DIN 3230
- Face to face according to: DIN 3202-F1
- Flange drilling to: DIN 2533
- Fusion bonded epoxy coated internally and externally
DRAKOS GATE VALVE
Fact sheet download >>>>>>>>>>>>>>>
Product image
- Resilient seated gate valve
- For water and sewage use
- Design standard: BS5163, EN1074-2
- Working temperature: Maximum 70º C
- Nominal pressure: 16 bar (other rating also available on request)
- Body test pressure: 24 bar
- Sealing test pressure: 17.6 bar
- Hydraulic test standard: BS6755, EN12266-1 (ISO 5208)
- Face to face according to BS5163, EN558-1 Series 1
- Flange drilling to: BS4504, EN1092-2 (ISO7005-2)
- Fusion bonded epoxy coated internally and externally
