Gear Pump – Type SGX
Fact sheet download >>>>>>>>>>>>>>>

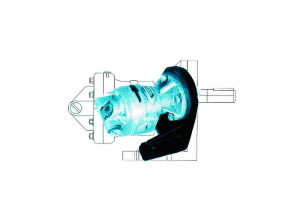

Product image
Applications:
An Efficient, economical, simple and silent pump. It is reliable for transfer of all viscous & semi viscous liquids like LDO, FO, HSD, Lubricating oils etc.
Gear Pump – Type SG
Fact sheet download >>>>>>>>>>>>>>>
Product image
Applications:
An Efficient, economical and reliable pump. It is suitable for pumping and transfer of all viscous liquids, oils and petroleum products.

Technical Data:
- Single helical gears
- Hardened & ground shafts
- Maximum capacity: 50 LPM
- Maximum pressure: 10 kg/cm²
- Maximum temperature: 80º C
- Modified version for high temperature up to 250º C
- Modified version for molasses and vacuum application

Gear Pump – Type AFP
Fact sheet download >>>>>>>>>>>>>>>
Product image
Applications:
High precision positive displacement internal gear pump to match the most demanding application in boilers, burners, hydraulic, fuel pressuring and injection. This pump is ideally suitable for handling liquid like LDO, FO, LSHS and HSD. It can be used as booster pump for diesel locomotive, pump for force deed lubrication, in oil filtration system, oil pumping and heating systems and in machine tool units.
Gear Pump – SS Series
Fact sheet download >>>>>>>>>>>>>>>
Product image
Applications:
It is suitable for transfer of corrosive chemical & viscous liquids..

Advantages:
- Complete SS316 investment casting
- Nitrided gears and shafts for longer life
- Teflon coated bush for smooth performance
- Zero leakage PTFE type Z – Pac sealant in gland
- Optimum internal clearance for accurate capacity and lower power consumption

Gear Pump – AENX Series
Fact sheet download >>>>>>>>>>>>>>>
Product image
Applications:
It is suitable for pumping and transfer of all kind of viscous liquids and petroleum products.

Technical Data:
- Flange Connection
- Double helical herring bone gears
- Inbuilt pressure relief valve
- Self priming pump with 5m suction lift
- Optional mechanical seal
- Self or independent fabrication
- Optional high temperature version
- Maximum capacity: 125 m³/h
- Maximum temperature: 120º C
- Maximum pressure: 12 kg/cm²
- Maximum viscosity: 5000 CST
