Applications
It is suitable for using in the occasions which require large flux and high lift, such as iron works, electric power plant and pump station, etc. It is applicable for feeding such as water or liquid similar to water at the temperature from -10º C to 80º C.
It is suitable for using in the occasions which require large flux and high lift, such as iron works, electric power plant and pump station, etc. It is applicable for feeding such as water or liquid similar to water at the temperature from -10º C to 80º C.
Product Characteristic
- Water inlet and outlet are installed in pump body. Just hoist the pump cover when overhaul, greatly facilitating maintenance.
- Primary stage double suction and secondary stage suction of impeller adopted, greatly improving anti-cavitations performance of pump and decreasing axial dimension of pump.
- At rotary speed of 1480 rpm, avoiding caused by high rotary speed.
- In comparison with single stage pump, the products have same performance and smaller diameter and stable operation.
- The pumping chamber adopts double volute design, reducing radial force.
- Fully mechanical seal ensures no leakage within 8000 hours and packing seal is customizable.
- The pump rotation is clockwise and anti-clockwise rotation is customizable.
Materials:
- Pump casing: Cast Iron, Ductile Cast Iron, Cast Steel
- Impeller: Cast Iron, Ductile Cast Iron, Cast Steel or Stainless Steel
- Shaft: Stainless Steel
- Seal Ring: Cast Iron, Ductile Cast Iron or Stainless Steel
Applications:
Suitable for handling water slight impurities in industries, Water Works, Storm Water, Irrigation, Sprinkle Irrigation, Fire Fighting, Air-conditioning Plants, Water Circulation, Waste Water Treatment Plants, Processing Plants, Power Plants, Fertiliser Plants, Refinery, Paper, Sugar and Textile Mills etc.
Design

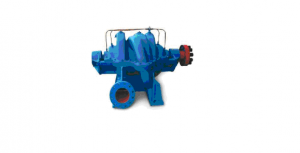

Single stage, axially split volute casing pump with double flow radial impeller, for horizontal and vertical installation. Drive shaft end of the horizontal pump optionally on the left or right side.
Operating Data:
- Pump Size: 80 to 800mm
- Capacity: up to 11600 m³/h
- Head: up to 200m
- Working Temperature: up to 105º C
- Solid Grains: up to 80 mg/L
- Working Pressure: up to 25 bar
- Testing Pressure: up to 37.5 bar
Materials:
- Pump casing: Cast Iron, Ductile Cast Iron, Cast Steel, Stainless Steel
- Impeller: Cast Iron, Bronze or Stainless Steel
- Shaft: Steel or Stainless Steel
Applications
It is suitable for water supply and drainage in factories, mines, cities and electric station, waterlogged land drainage and irrigation of farming land and carious hydraulic projects.
Features and Benefits
- Low Noise
- Stable Running
Single stage, axially split volute casing pump with double flow radial impeller, for horizontal and vertical installation. Drive shaft end of the horizontal pump optionally on the left or right side.
Technical Data
- Diameter meter: 150mm to 800mm
- Head Range: 10m to 135m
- Working Temperature: up to 80º C
Materials:
- Pump casing: Cast Iron, Ductile Cast Iron, Cast Steel, Stainless Steel
- Impeller: Cast Iron, Bronze or Stainless Steel
- Shaft: Steel or Stainless Steel
