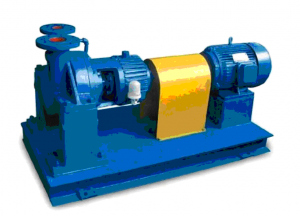

SLZA Series pumps are horizontal , axial suction, single stage, single suction centrifugal pumps. The design is in
according with 10th version of ANSI/API 610-2004 (Industrial centrifugal pumps for petroleum, heavy chemical
and natural gas). Among these series of pumps, SLZA is OH1 type and SLZA E/F is OH2 type. These pumps are
suitable for transferring liquid like clean fluid, low or high temperature flammable, explosive and corrosive liquid
with solid.

Performance Parameters

■ Aperture (DN): 25 ~ 400mm
■ Capacity (Q): 2 ~ 2400 m³/h
■ Head (H): up to 300m
■ Working Pressure (P): 2.5 MPa ~ 7.5 MPa
■ Working Temperature (T): - 80º C ~ 430º C

Applications

■ Refinery plant, petro-chemical industry, coal-process industry and low temperature projects
■ Chemical industry, paper-making, pulp and sugar refinery and normal process industries.
■ Water supply plant, Desalination
■ Heat supply and Aircondition system
■ Power plant
■ Environment engineering
■ Naval architecture and ocean engineering

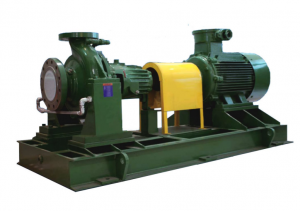

Capacity: 2.5 to 600 m³/h
Head: 30to 330m
Medium Temperature: -45º C to 420º C

Pump Type SJ is a new model Pulp Pump, designed on the basis of pulp’s feeding through liquid, solid and gas. Developed by advance technique, suitable for the severe condition of the pulp making and paper making trade. It has not only wide performance range and small intervals between parameters, but also takes. So it can save energy and increase the capacity of the pump, which delay its using life.

Performance Range

Capacity: 20 ~ 1600 m³/h
Head: 8 ~ 50m
Pulp Density: ≤5%
Working Temperature: ≤100º C

- For clean or turbid liquids, free from large solids
- For pumping water, petrol, benzene, oil, brine, alkaline solutions and mild acids
- For circulation, irrigation and drainage purposes
- For water supply and booster stations
- For industrial and agricultural applications and in public services

Operating Data:

- Capacity: up to 570 m³/h
- Head: up to 160m
- Working Temperature: up to 140º C
- Working Pressure: 16 bar

- For clean or turbid liquids, free from large solids
- For pumping water, petrol, benzene, oil, brine, alkaline solutions and mild acids
- For circulation, irrigation and drainage purposes
- For water supply and booster stations
- For industrial and agricultural applications and in public services

Operating Data:

- Capacity: up to 150 L/sec
- Total Head: up to 150m
- Working Temperature: up to 100º C
- Working Pressure: 10 bar (H: 16 bar)

Materials:

- Pump Casing: Cast Iron, Bronze or Stainless Steel
- Impeller: Cast Iron, Bronze or Stainless Steel
- Shaft: AISI 304 - 316
- Sealing with Mechanical seal or Packing gland
