DRAKOS Specification:
- Widley applied in general machinery and industries such as pumps & water treatment , fire flighting system, road machinery, petroleum,chemical,metallurgy, cement and paper milling
- IP55 Protection, Class F Insulation, B Temperature Rise, S1 Duty, Service Factor 1.15
- Rated Voltage:415V
- Rated Frequency: 50Hz
- Ambient Temperature: 50*c
- Altitude:<1000m
- Cooling Method:IC411

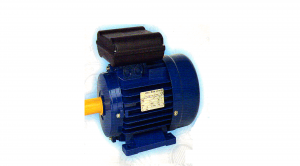

Series 3 SM3 single phase run capacitor asynchronous electric motors is produced according IEC standard.
The operational advantages of 3 SM3 series of electric motors:
- Simple Structure
- Easy Maintenance
- Protection IP
The operational advantages of 3 SM3 series of electric motors:
- Simple Structure
- Easy Maintenance
- Protection IP
Widely used for applications such as household appliances
Series 3 SM2 is a single phase capacitors start and run asynchronous electric motor.
The operational advantages of 3 SM2 series of electric motors :
The operational advantages of 3 SM2 series of electric motors :
- Small size high capacity
- High Power Factor
- High Efficiency
Widely used for applications such as with high performance of full load
Series 3 SM1 single phase capacitor single phase capacitor start asynchronous electric motor. Best solution for applications with starting torque 2 ~ 3 times the rated torque.
The operational advantages of 3 SM1 series of electric motors :
- Low Noise Level
- Low Temperature Rise
- High Starting Torque
Widely used for applications such as : Machine tools , compressors and whether application needs HIGH STARTING TORQUE.
AMV Series Medium Voltage Totally Enclosed Compact Type(TEFC) 3-Phase Induction Motors are newly developed and designed by our company, based on advanced technology and high level production methods. Compared with the traditional Series of Medium Voltage 3-Phase Induction Motors, the motors have a lot of advantages such as compact structure, light weight fine looking and high protection class. The motors can be used to drive all kinds of general purpose machines such as water pumps, compressors, coal-grinders, transportation machinery and cutting machines and so on.
This series of motors are manufactured at a high level with new materials and new techniques. The installation dimensions and power classes meet the IEC Standard. The motors are characterized high level, low noise, low vibration, high reliability and easy installation and reparation.
Altitude above sea level: < 1000m Ambient Temperature:-15 ~40°C (higher upon request) Duty: continuous (S1)
When the motor is running, the allowable voltage and frequency deviation should meet GB755.
The motor should use shaft coupling to drive.
Outlet Method: From the right side. Install PT100 on the beating and winding protection for each phase
IEC 60034 - 5, IEC 60034 - 6
SPECIFICATION
- Enclosure: (TE) Totally Enclosed
- Rotor Type: Squirrel Cage
- Voltage: 6 kV
- Output Range: 185 to 1600kW
- Frame Size: 355 to 560 (for large power please refer to literature of KMV series)
- Protection Grade: IP55 (IEC 60034-5)
- Method of Cooling: IC411 (IEC 60034-6)
- Insulation Class: F
- Frequency: 50 Hz
This series of motors are manufactured at a high level with new materials and new techniques. The installation dimensions and power classes meet the IEC Standard. The motors are characterized high level, low noise, low vibration, high reliability and easy installation and reparation.
Altitude above sea level: < 1000m Ambient Temperature:-15 ~40°C (higher upon request) Duty: continuous (S1)
When the motor is running, the allowable voltage and frequency deviation should meet GB755.
The motor should use shaft coupling to drive.
Outlet Method: From the right side. Install PT100 on the beating and winding protection for each phase
IEC 60034 - 5, IEC 60034 - 6
SPECIFICATION
- Enclosure: (TE) Totally Enclosed
- Rotor Type: Squirrel Cage
- Voltage: 6 kV
- Output Range: 185 to 1600kW
- Frame Size: 355 to 560 (for large power please refer to literature of KMV series)
- Protection Grade: IP55 (IEC 60034-5)
- Method of Cooling: IC411 (IEC 60034-6)
- Insulation Class: F
- Frequency: 50 Hz
3Μ Series is a special designed , developed electric motor by the mean of covering all of your applications (simple, difficult or special) providing high efficiency moreover high operational performance of electric motion for your complete system.
GENERAL FEATURES
- Dimensions acc IEC 34, DIN 42673, GB755
- Nominal voltage 400 V at frequency 50 Hz also complied to nominal voltage of 440 V at 60 Hz .
- Designed for continuous duty S1 for temperature of 40°C up to 1000 m altitude.
- Special designed rotor circuit produced with special lamination coming from GERMANY or JAPAN.
Rotor circuit is always dependent from the also finest design of stator with winding of double varnish copper produced with V.P.I.
- Insulation Class F and temperature rise Β.
- IC 411 cooling , TEFC.
- Low Vibration Ν class , Low Noise Level.
- High Efficiency – RELIABLE NOMINAL POWER.
- Simple Maintenance.
